Gearless P.M.S.M Elevator Traction Machine
No : BB2 - Gearless Permanent Magnet Synchronous Motor Elevator Traction Machine

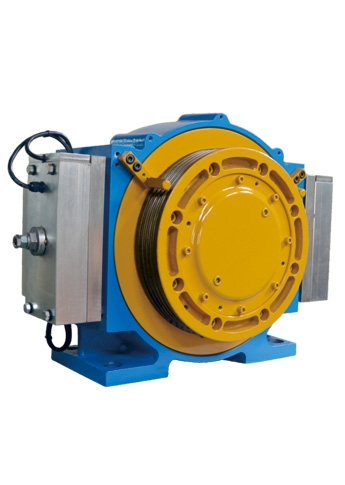

Gearless Permanent Magnet Synchronous Motor Traction Machine

The PMSM Gearless traction machine is assembled by permanent-magnet synchronous motor, traction wheel and brake system through the encoder to achieve closed-loop control and frequency control operation.

Compared with the traditional products, the traction machine has high efficiency factor, high efficiency, low starting current is small, large starting torque, smooth running comfort etc.; use of rare earth permanent magnet materials, small size, light weight; no gear, low noise and high reliability.

1.Safety
2.Comfort

Excellent smooth speed machine ensures that passengers have more fluent and pleasant rides; we designed the most popular PMSM field-oriented control in the world to improve the flat layers accuracy.

3.Environment Protection

The motor noise is less or equal to 60dB; apply non-asbestos materials on brake lining, various working conditions and stable performance.

4.High Efficiency
5.Small Size
6.Natural Cooling

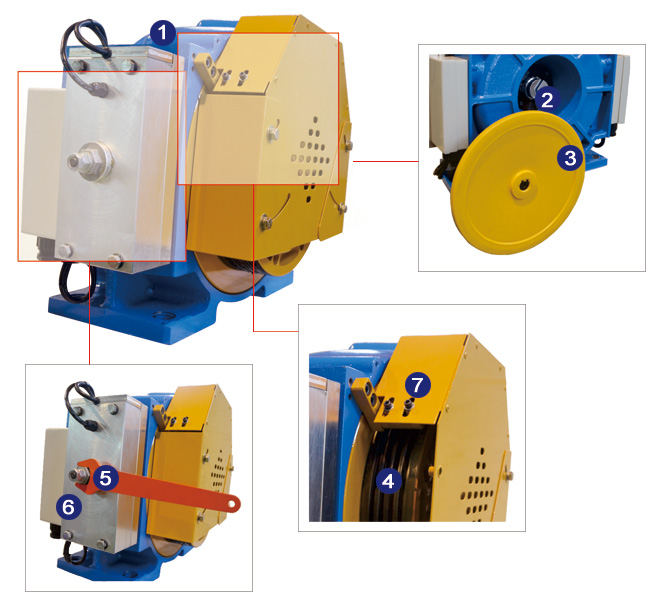

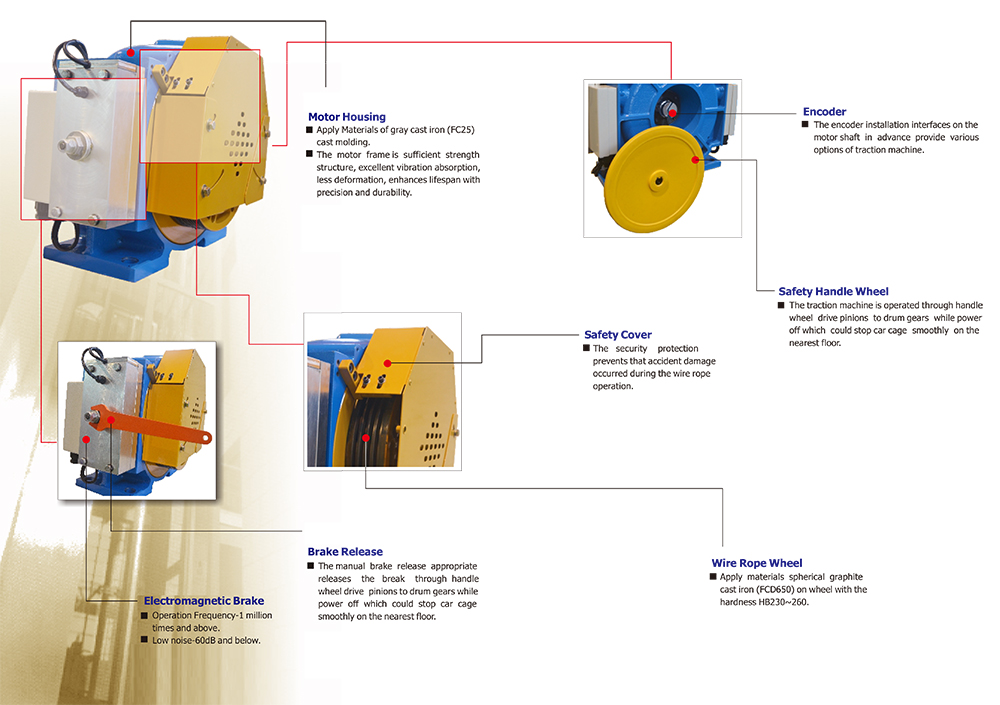

Gearless P.M.S.M Traction Machine
1. Motor Housing
  • Apply Materials of gray cast iron (FC25) cast molding.
  • The motor frame is sufficient strength structure, excellent vibration absorption, less deformation, enhances lifespan with precision and durability.
2. Encoder
  • The encoder installation interfaces on the motor shaft in advance provide various options of traction machine.
3. Safety Handle Wheel
  • The traction machine is operated through handle wheel drive pinions to drum gears while power off which could stop car cage smoothly on the nearest floor.
4. Wire Rope Wheel
  • Apply materials spherical graphite cast iron (FCD650) on wheel with the hardness HB230~260.
5. Brake Release
  • The manual brake release appropriate releases the break through handle wheel drive pinions to drum gears while power off which could stop car cage smoothly on the nearest floor.
6. Electromagnetic Brake
  • Operation Frequency-1 million times and above.
  • Low noise-60dB and below.
7. Safety Cover
  • The security protection prevents that accident damage occurred during the wire rope operation.
Structure Description
  • Apply cold silicon steel stator with F class insulation.
  • Apply rare earth element of NdFeB permanent magnetic as the materials of permanent magnet
  • Apply a self-alignment roller bearings on driving.
  • Cooling by natural cooling.
  • Apply QT-700 nodular graphite cast iron material on traction wheel.
  • Apply electric disk brake on braking system.
Exploitation(make use of) Conditions

In accordance with GB/T 13435-1PPZ "elevator traction machine" standard, the gearless permanent magnet synchronous traction machine shall be working in the following environmental conditions:

  • The indoor temperature between 5 ~ 40°C.
  • The highest monthly average of environment relative humidity is less than 90%, while the monthly average minimum temperature is not higher than 25°C.
  • No more than ± 7% on supply voltage fluctuations and rating deviation.
  • No corrosive and flammable gases on ambient atmosphere.
  • Traction rope shall be coated without any lubricants or any surface pollutants.
  • The quality of cargo and counterweight and the angle of rope on the traction wheel Shall comply with the regulation of GB / T 7588-2003 (Article 9.3.1b.)
Noise Vibration
  • Electrical Noise ≤ 60dB
  • Vibration velocity RMS:
    Vibration speed: 1mm / s and below
    Vibration acceleration: 2m / s and below
    Pulley Torsion Vibration: 4.5mm / s and below
    Amplitude: 15µm and below

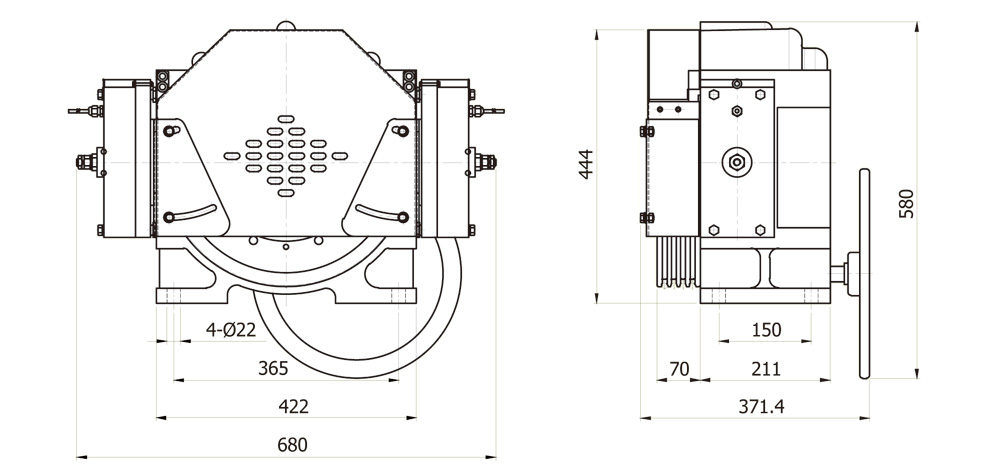

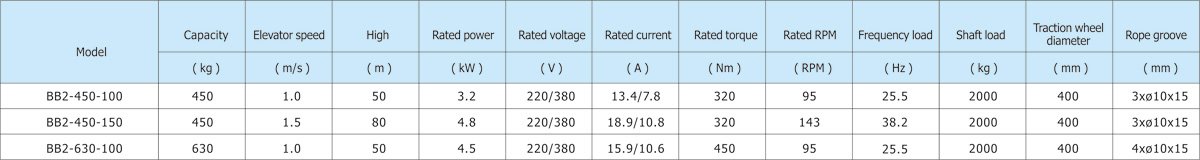

360 Series
  • Structure : Internal Rotation
  • Suspension : 2:1
  • Brake voltage : DC110V
  • Operation ED : 60% ED
  • Insulation class : F class
  • Weight : 240 kg
Gearless P.M.S.M Traction Machine
Gearless P.M.S.M Traction Machine

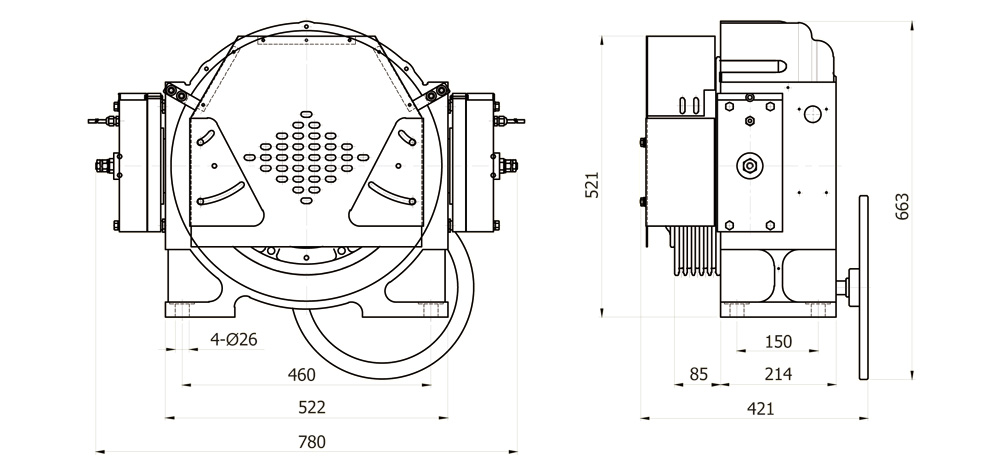

460 Series
  • Structure : Internal Rotation
  • Suspension : 2:1
  • Brake voltage : DC110V
  • Operation ED : 60% ED
  • Insulation class : F class
  • Weight : 320 kg

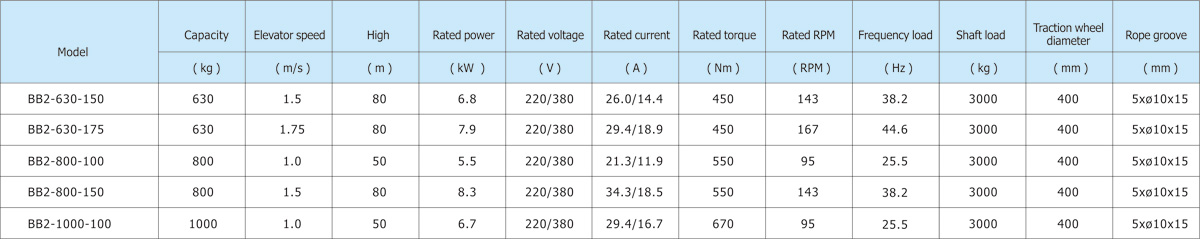

BB2 Gearless P.M.S.M Traction Machine 460
BB2 Gearless P.M.S.M Traction Machine 460
560 Series
  • Structure : Internal Rotation
  • Suspension : 2:1
  • Brake voltage : DC110V
  • Operation ED : 60% ED
  • Insulation class : F class
  • Weight : 410 kg

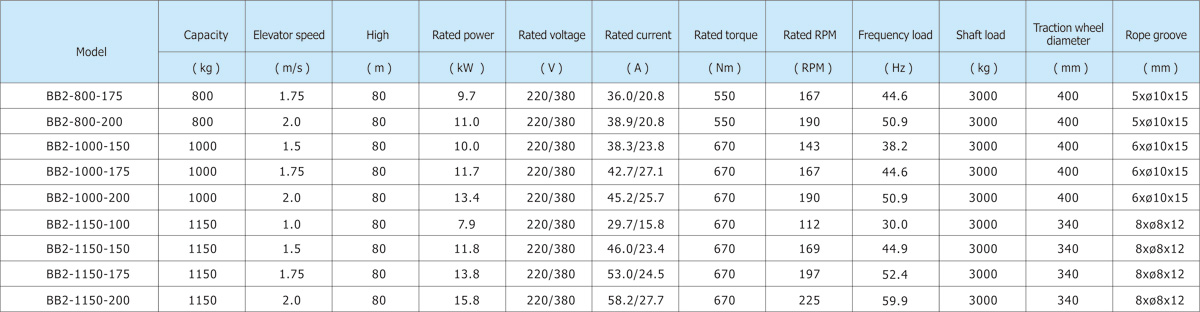

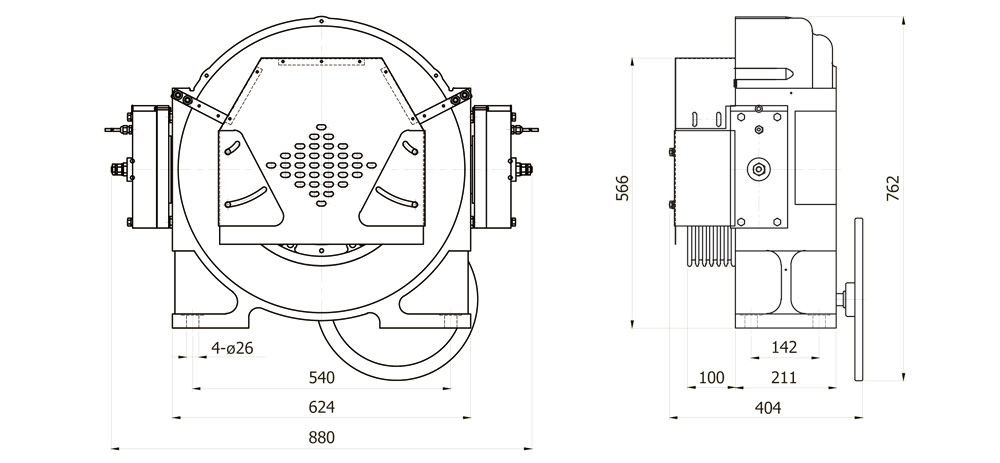

BB2 Gearless P.M.S.M Traction Machine 560
BB2 Gearless P.M.S.M Traction Machine 560
  • Data are subject to change without prior notice.

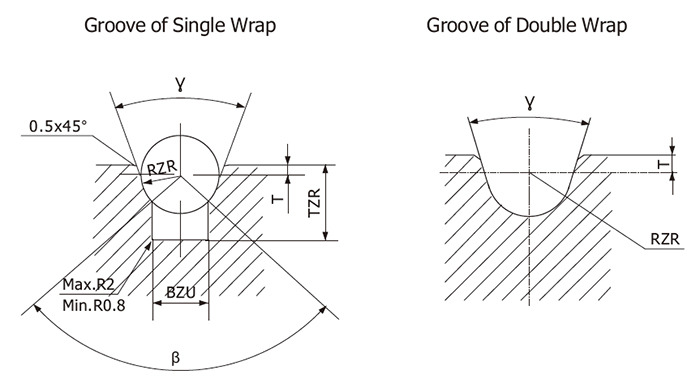

  • This is our factory standard configuration groove.
  • The user should calculate the elevator traction capability and the safety factory of rope according to the actual parameter.

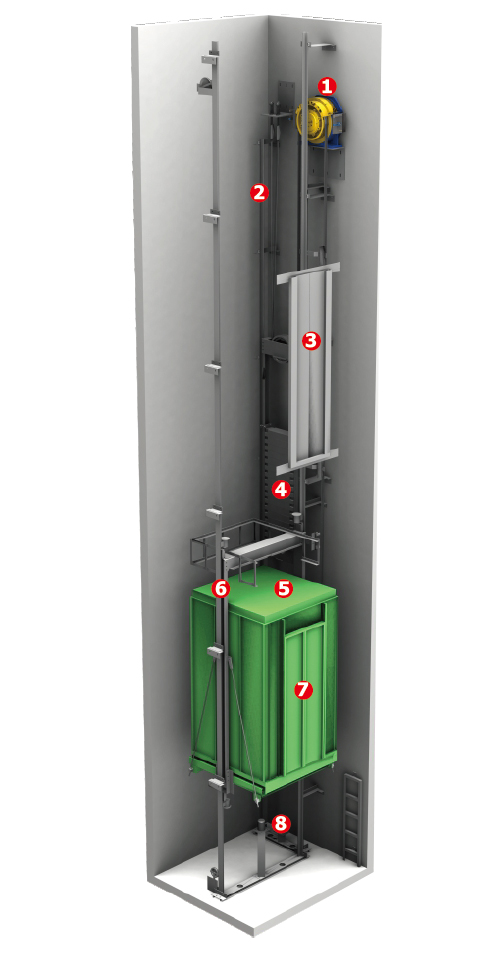

1. Traction Machine
2. Counterweight Rail Guide
3. Service Door (outside)
4. Counterweight
5. Car Cage
6. Car Rail Guide
7. Car Door (inside)
8. Buffer
Traction Machine
  • Installation : Foot Mount Installation
  • Power Supply : Input with inverter
  • Maximum rated torque : 200%
  • Operation ED : 60% ED
  • Nsulation Class : F Class
  • Location : Indoor
  • Temperature : -10 ~ +40°C
  • Humidity : 90% RH (no frost) and below.
  • Height : No less than 1000m and below
  • Encoder : 2048/8192 P/R (optional)
  • Brake : Dual Electromagnetic Brake
  • Suspension : 2 : 1
