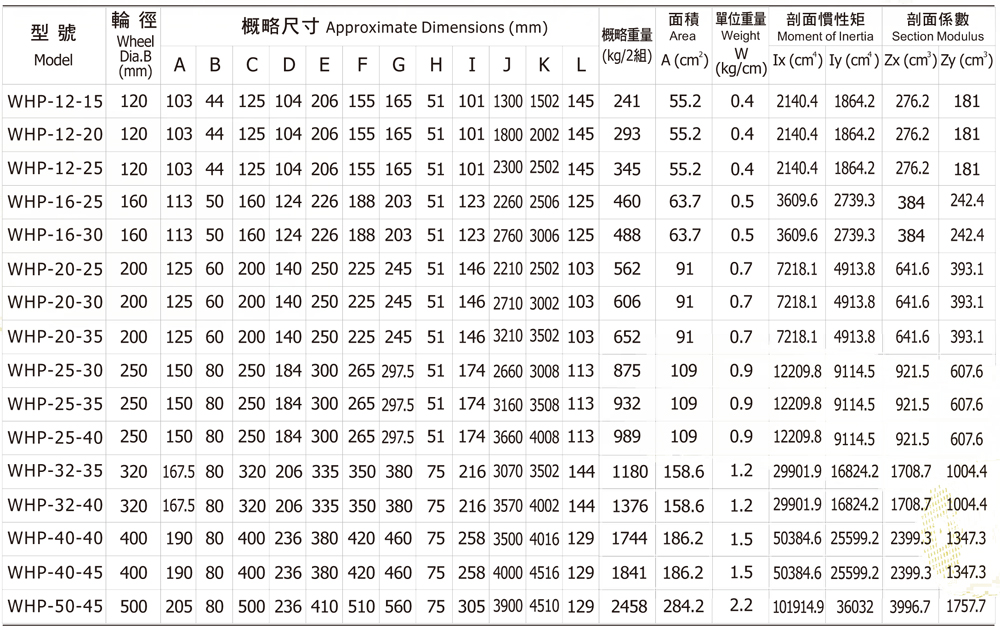

Model : Referance-below-chart.
Product Description
Inquiry

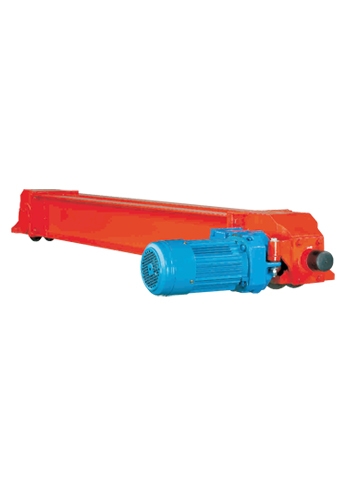

Wheel Head type End Truck
End Truck

Wheel head kits are bolted to the saddle by screwing connection.

Top Running End Truck
  • Bearing mounting area of End truck is precisely machined by CNC machining center.
  • Wheel Axles are precisely machined high grade steel and pressed fitting into the wheels.
  • End trucks are supplied with rubber bumpers bolted to the end plates.
  • End plates are bolted to the end truck frame for easy wheel removal.
  • Wheels are double flange forged or cast steel precisely machined and hardness HRC 40~45.
  • Connecting plate between girder and end truck could be supplied as an option and come complete with whole connection bolts and welded plates.
