Electric Chain Hoist (Low Headroom)

Model : YLTU,YHTU,YSTU,NHTD,YET,YLT,YHT,YST
Product Description

0.25T/0.5T/1T/2T/3T/5T

Inquiry
Electric Chain Hoist (Low Headroom)

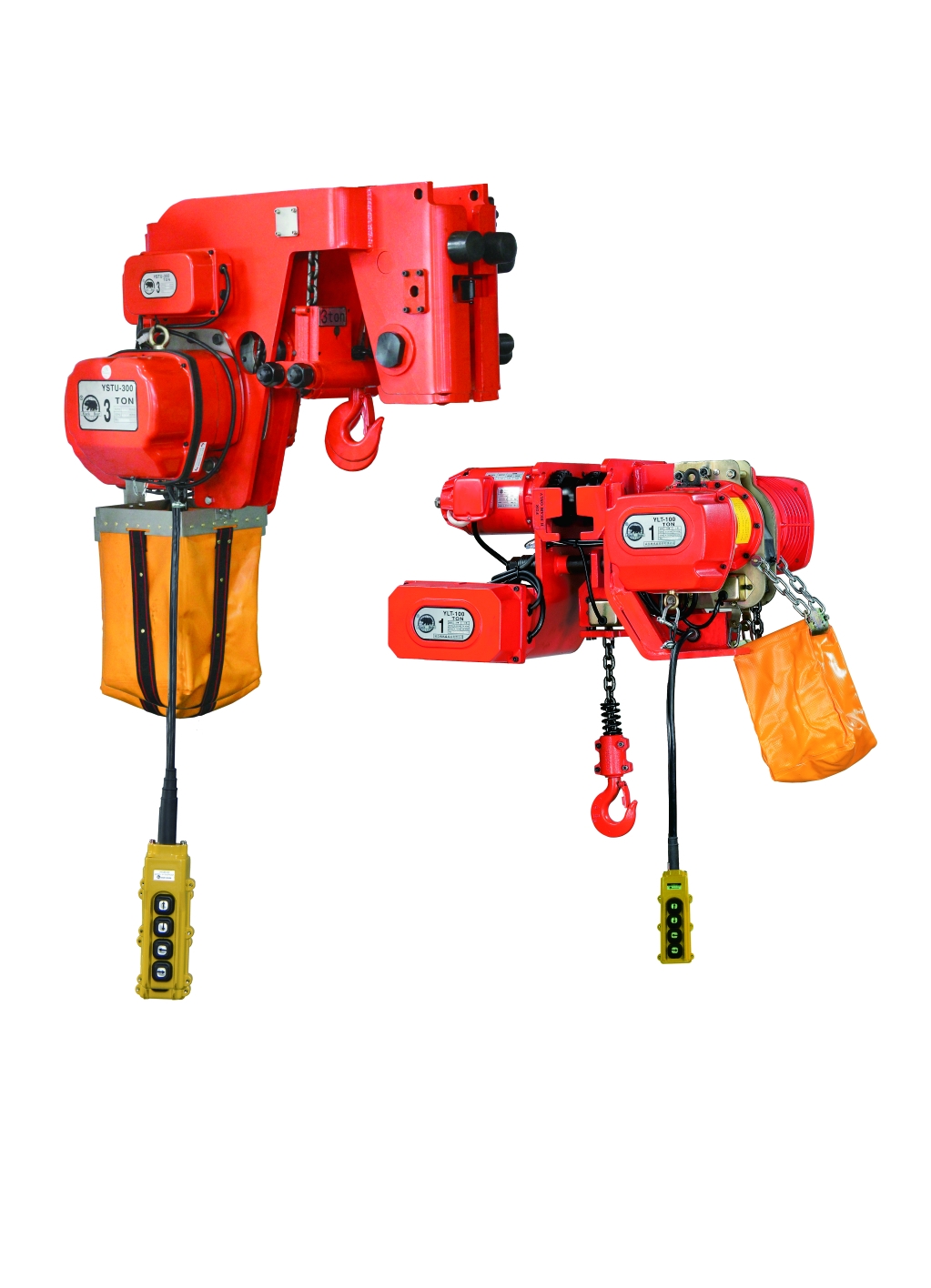

Low Headroom Series Electric Chain Hoist
YLTU/YHTU/YSTU
NHTD
YET/YLT/YHT/YST
NHTD

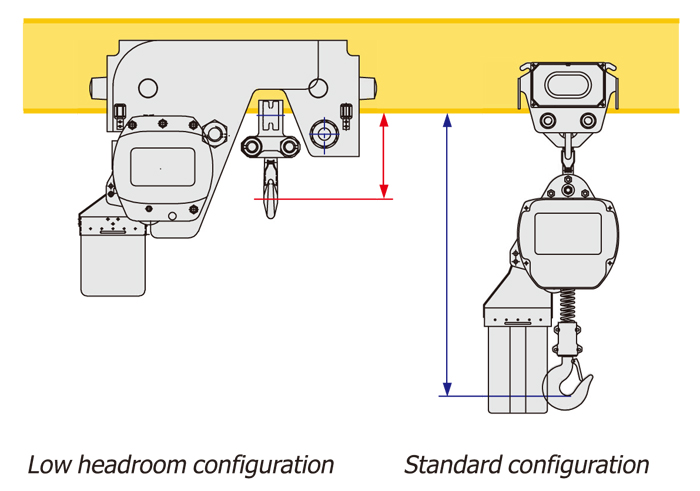

  • Specially engineered frame combines hoist and trolley for low headroom application.
  • Low headroom hoist maximizes effective lift.
  • Impressive additional operating height is available with low headroom hoist.
  • Other options are available on request.

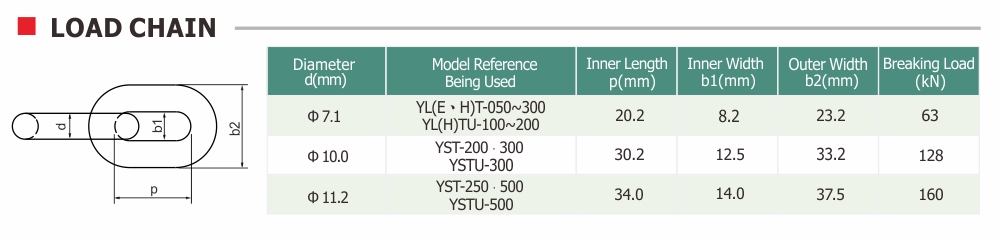

Load Chain
proimages/product/language-en/electric-chain-hoist/low-headroom/load-BB(en).jpg

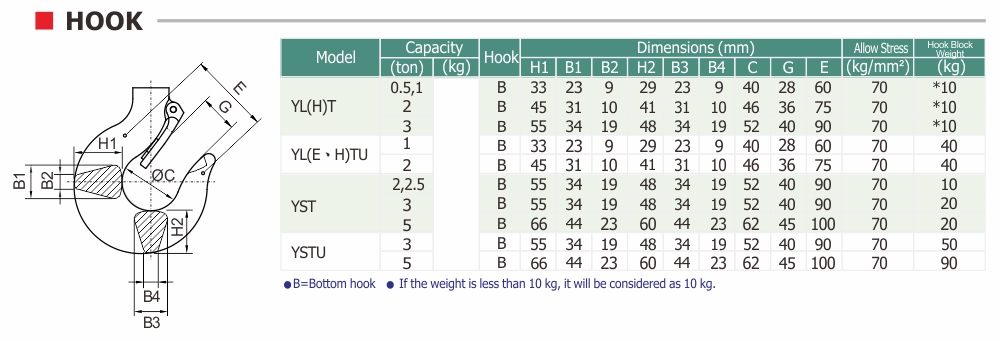

HOOK
proimages/product/language-en/electric-chain-hoist/low-headroom/HOOK-BB(en).jpg

Standard Accessories :
  1. Chain container : 1pc
  2. Power cord : 3M
  3. Push button Pendant (3M) 1pc



Power Supply :
  • Electric Chain Hoists are available in all standard voltages of three Phase power, from 220V to 600V;as well as 115V or 230V of three Phase hoists are re-connectable.



Lifting Height :
  • Standard lifting height: 3 Meters / 6 Meters.
  • Additional height available upon request (may be extra charged according to load chain length).



Lifting Speed :
  • Please refer to each detailed specification.

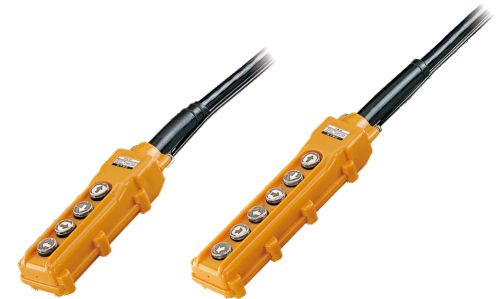

Push Button Pendent :
  • 4-button type: up and down; left and right (trolley).
  • 6-button type: up and down; left and right; forward and reverse ( end carrier ).



NHTD-01

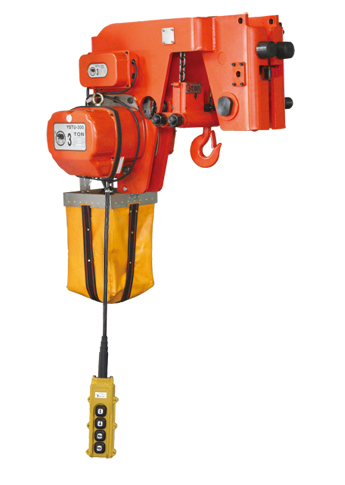

YLTU/YHTU/YSTU

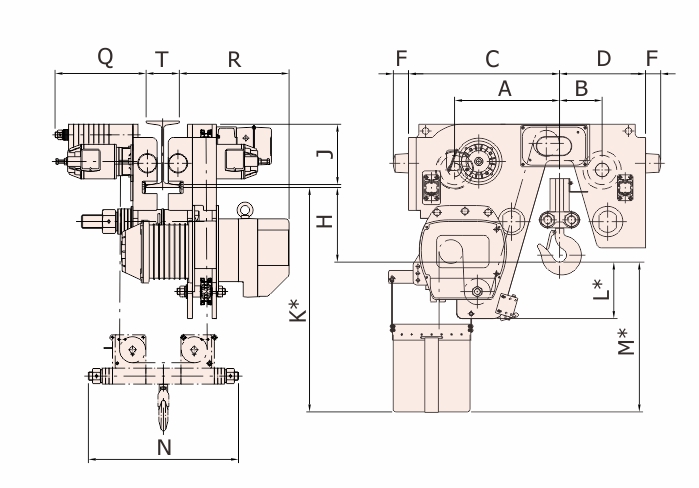

proimages/product/language-en/electric-chain-hoist/low-headroom/YLTU-L-BB(en).jpg

1ton~5ton

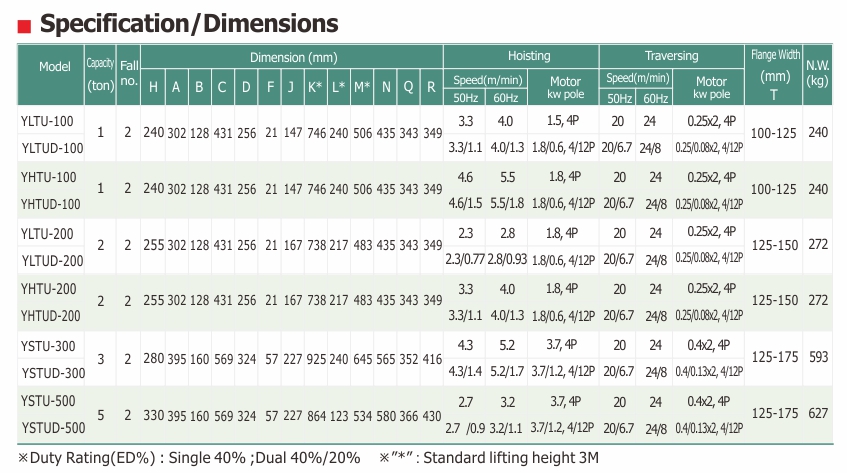

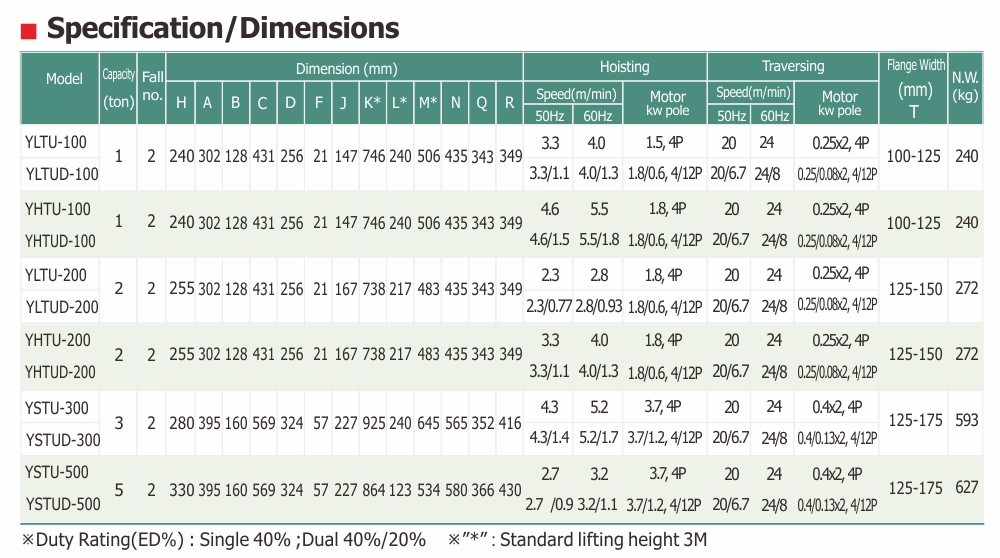

proimages/product/language-en/electric-chain-hoist/low-headroom/YLTU-SPEC-BB(en).jpg

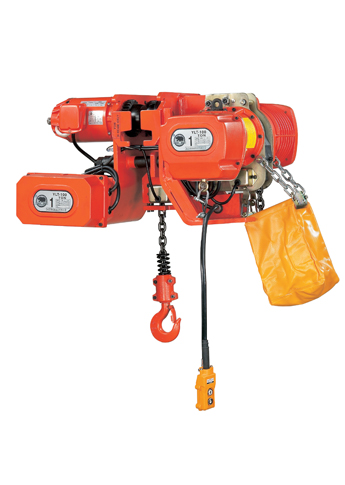

YET/YLT/YHT/YST
YLT-YHT-YST

0.5ton〜5ton

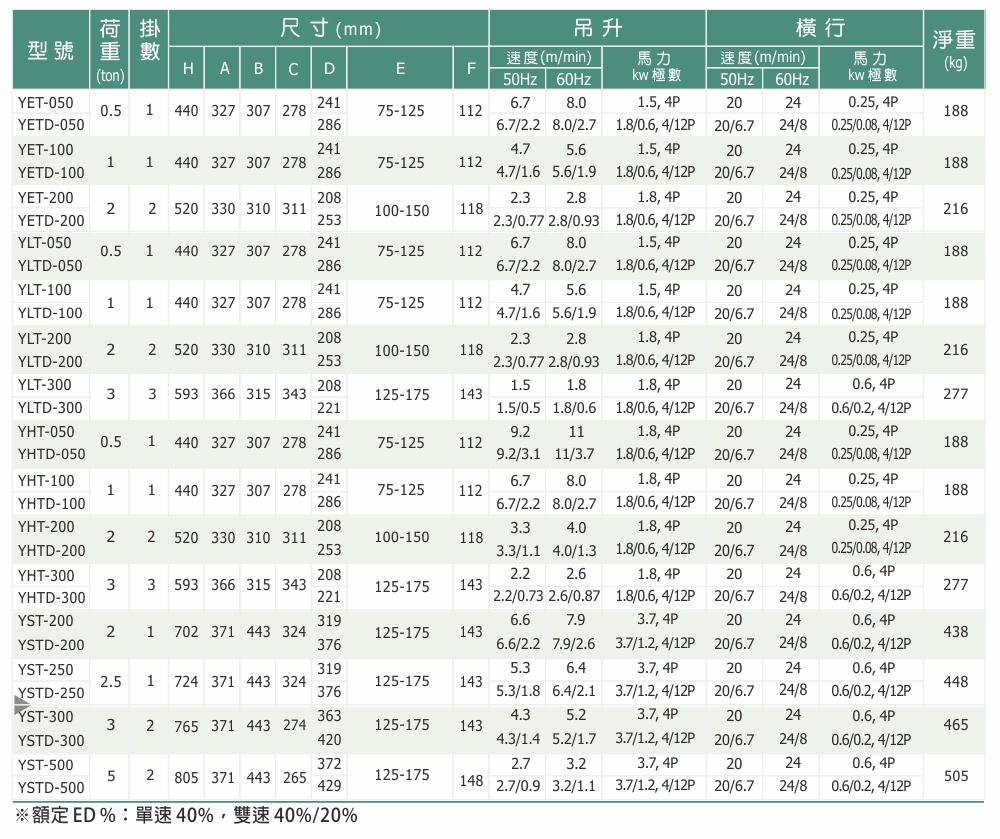

proimages/product/language-en/electric-chain-hoist/low-headroom/YLT-SPEC-BB(en).jpg
