D8

• Particularly design and operates in both upright and inverted position optimized collect chain at stage to load concert equipment.
• Comply with FEM 2m / ISO M5 classification.
• Matt-black non reflective finish chassis for rigid, compact, and durable.
• Forged hook is made of high tensile steel with heat treatment, allowing 360 degree swiveling, and equipped with safety latch to ensure proper rigging the load.
• MC Nylon chain leading plate ensures the chain links properly fit into the lift wheel, and eliminates the possibility of jamming, as well as protect the lift wheel from wet and dirt.
• Overload clutch as safety device.
• Duty cycle ED 40% high efficiency, robust motor running the hoist quietly and steady.
• IP55 rated hoist.
• Phase error relay is standard device, prevent circuit working at its wrong phased.
• Operates on single voltage between 220V~550V, 3 phase, 50 or 60 Hz. 48V operating voltage as standard & safety, depends on different countries request.

D8 plus

• Higher safety factor.
• Overload clutch protects damage from overloading and insures product and personnel safety. The clutch design location is not in the loading path, the main purpose is to avoid overload slipping and danger in static situation. (After restart, it cannot lift up because of the overload.)
• Dual Brake System can insure higher safety level, avoid one of brake system being magnetized after a long period of time using and cause the braking spring cannot rebound (loose brake). Therefore the second brake can insure safety operation. Structure design is modularity. Chain sprocket and chain regulator can be disasse mbled independently, easily replace and maintenance. Likewise, for rapidly repair and removal on motor brake coil or other spare parts.
• 5-pocket chain sprocket arrange with chain regulator design allow the load chain run smoothly.

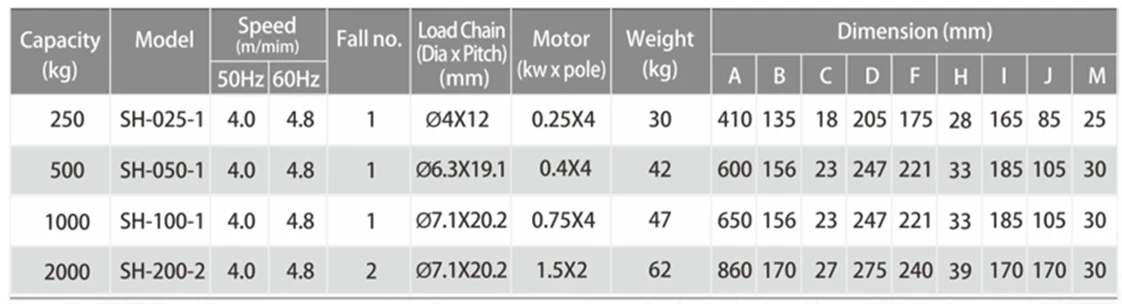

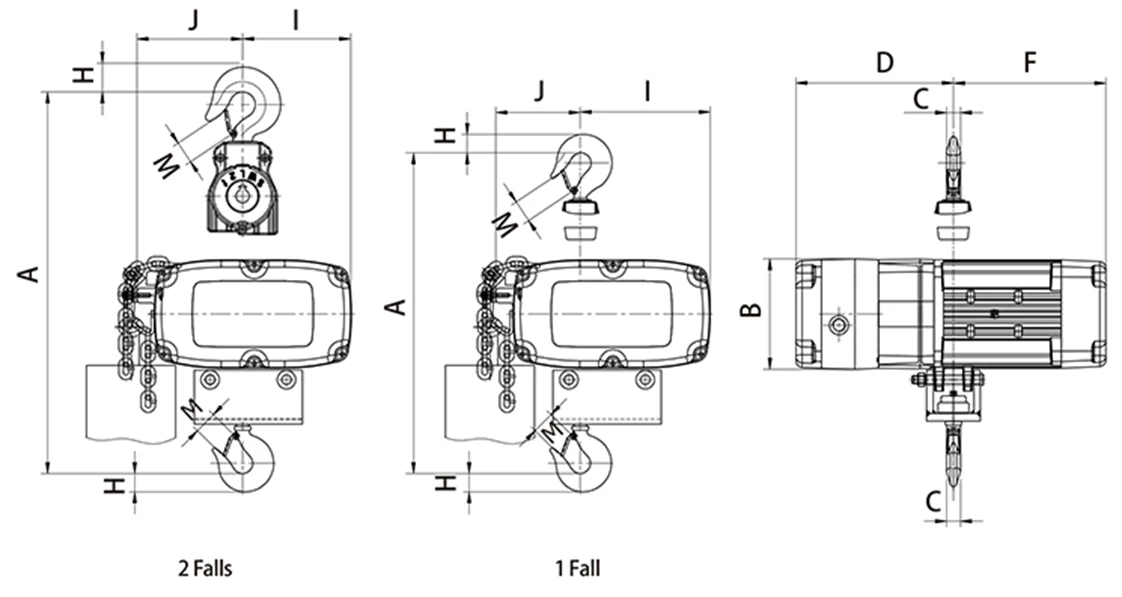

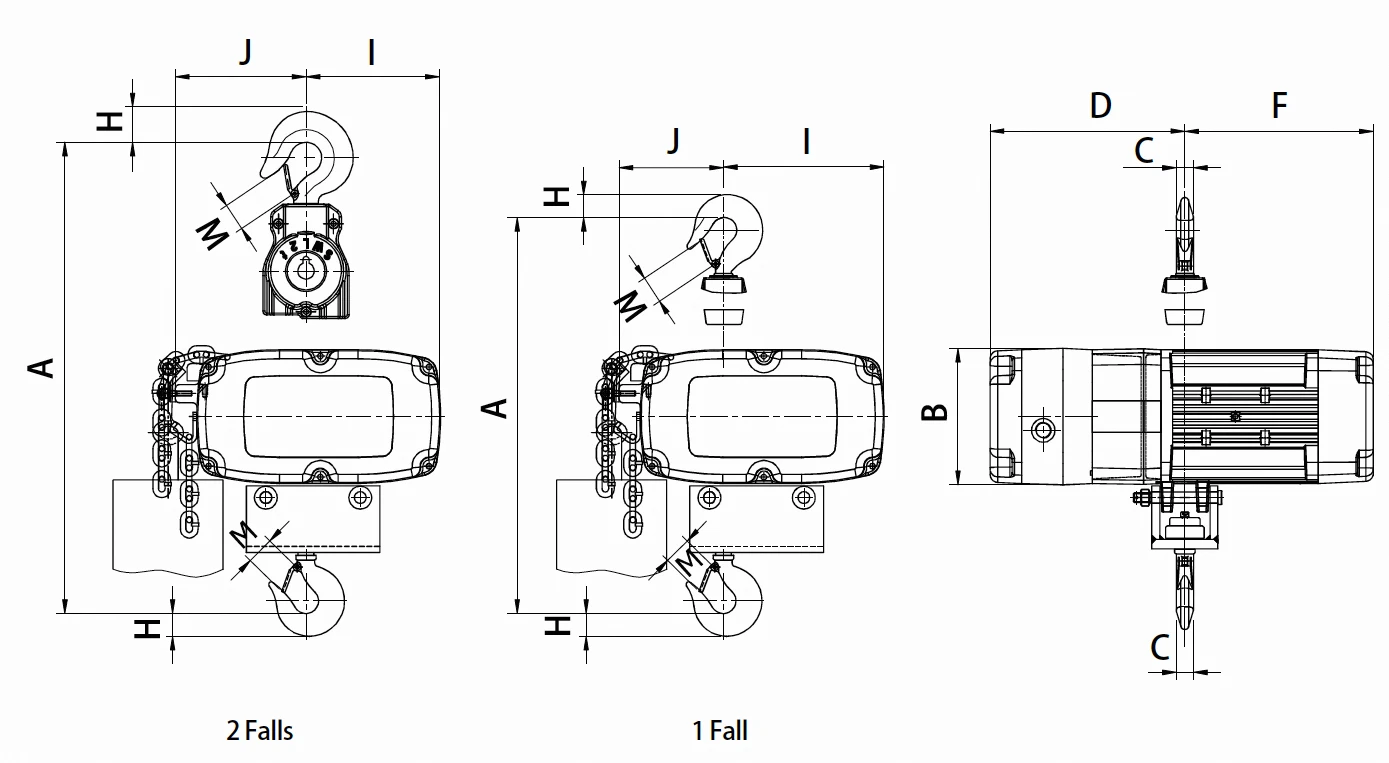

D8

0.25 ton~5 ton

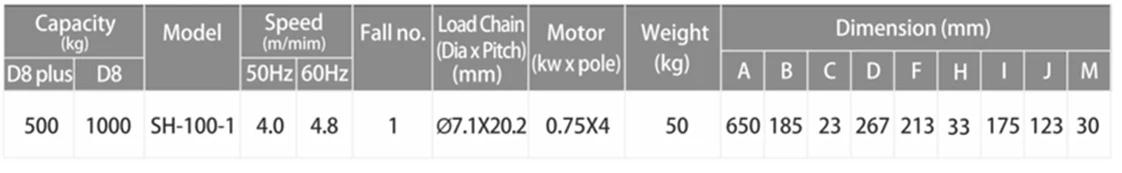

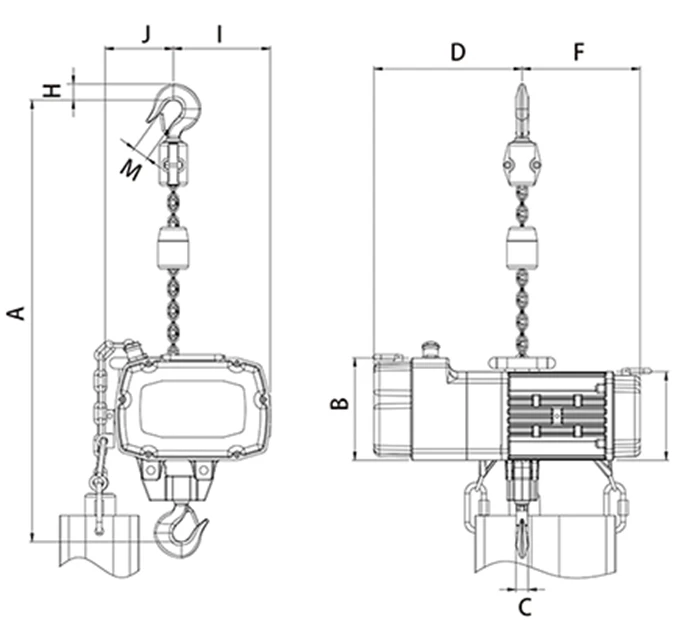

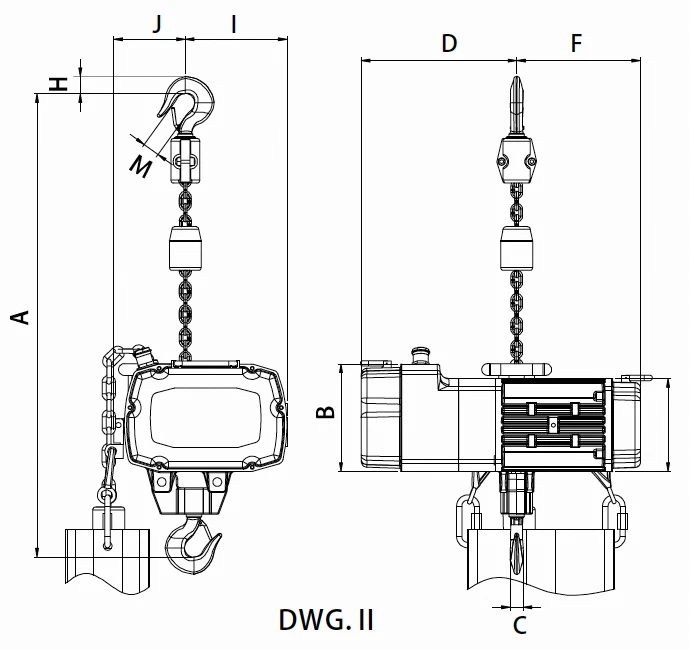

D8 Plus
