Electric Wire Rope Hoist (DC brake) Wire Rope Hoist SK/SG

  • Model:SK,SG.

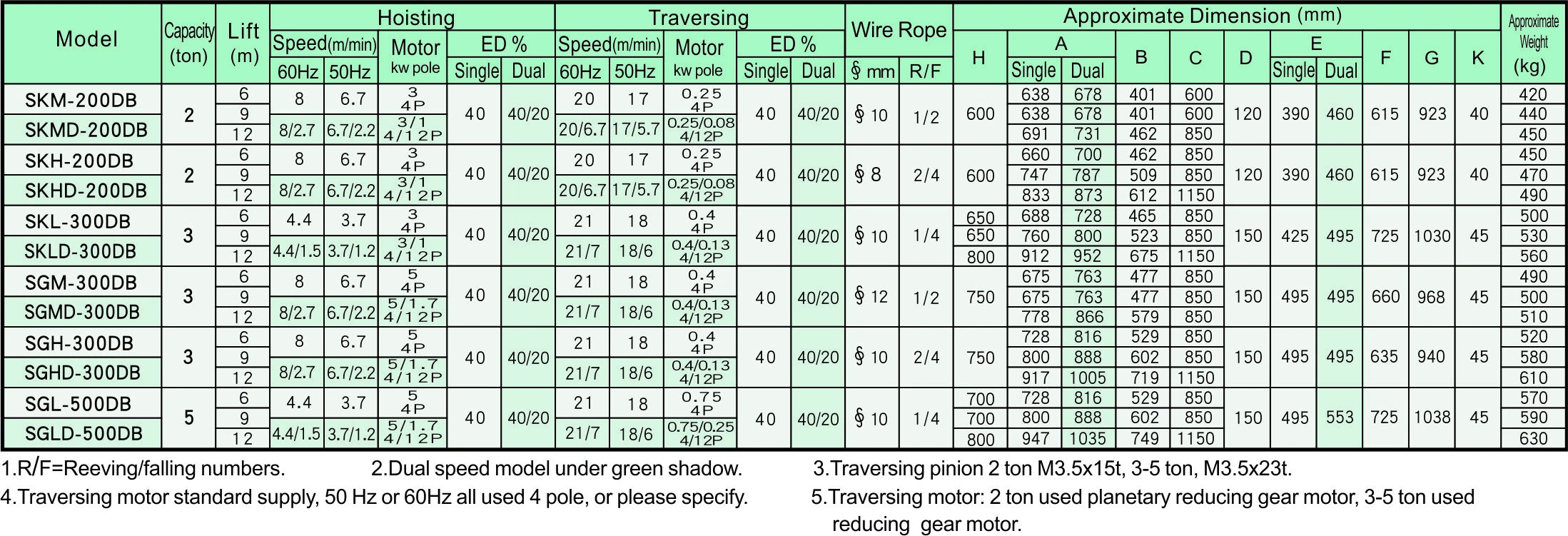

Specification

  • R/F=Reeving/falling numbers.
  • Dual speed model under green shadow.
  • Traversing pinion 2 ton M3.5x15t, 3-5 ton, M3.5x23t.
  • Traversing motor standard supply, 50 Hz or 60Hz all used 4 pole, or please specify.
  • Traversing motor: 2 ton used planetary reducing gear motor, 3-5 ton used reducing gear motor.
