Electric Wire Rope Hoist Manufacturers
The electric wire rope hoist is a lifting device used in various industries, construction sites, warehouses, and manufacturing facilities to vertically lift and move heavy loads. As one of the leading wire rope hoist manufacturers in Taiwan, Cheng Day provides numerous models to solve lifting problems.

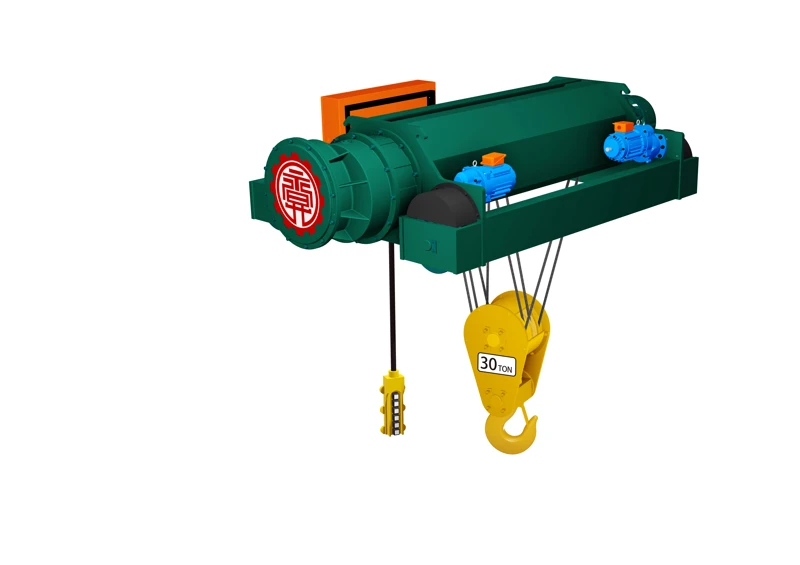

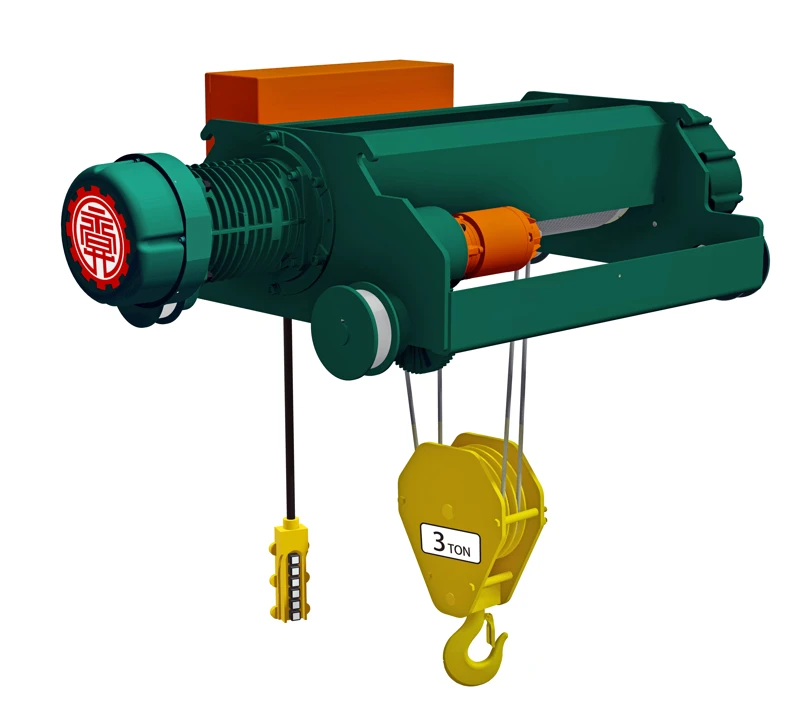

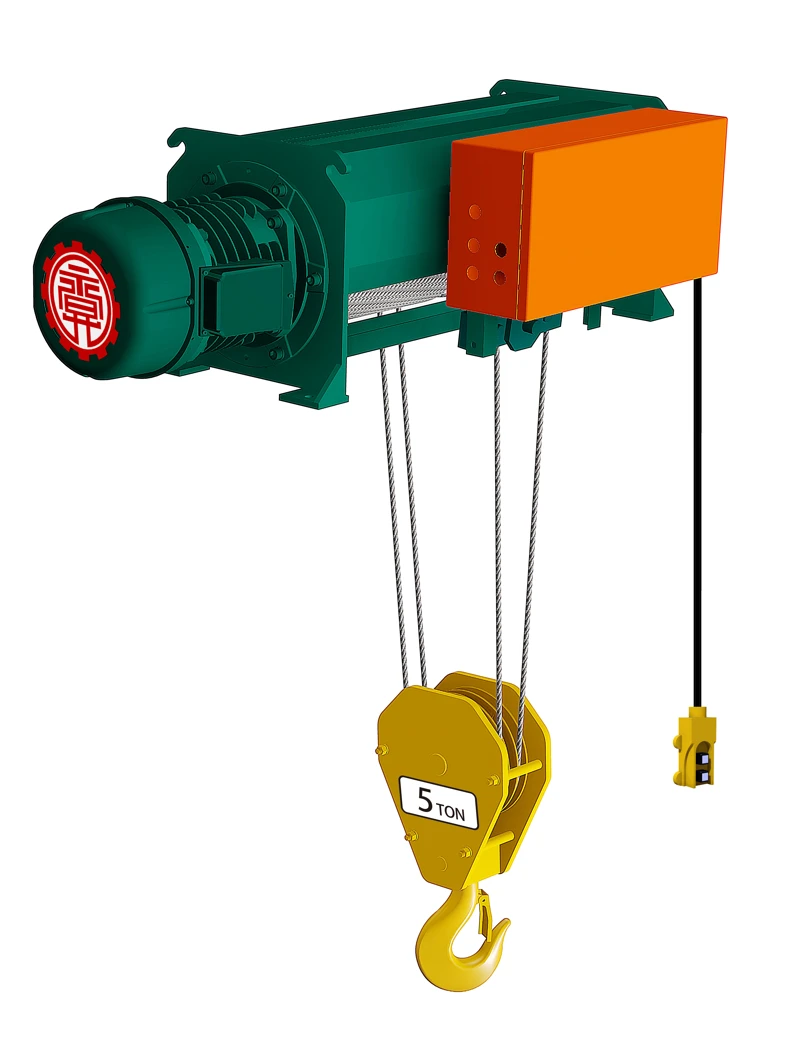

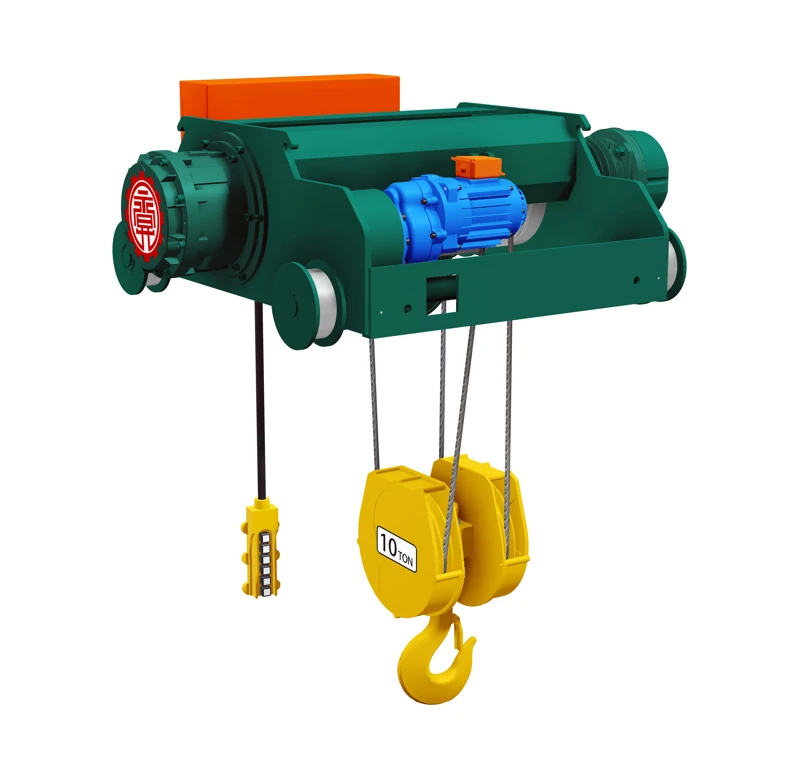

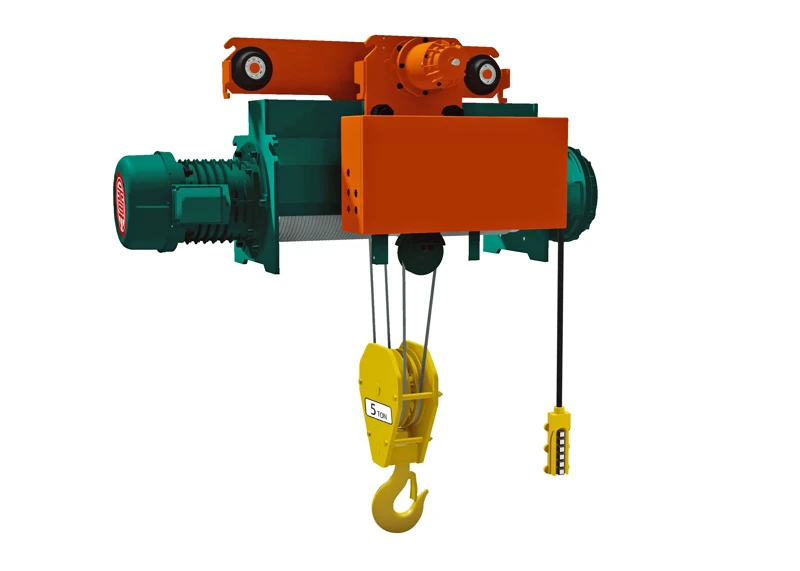

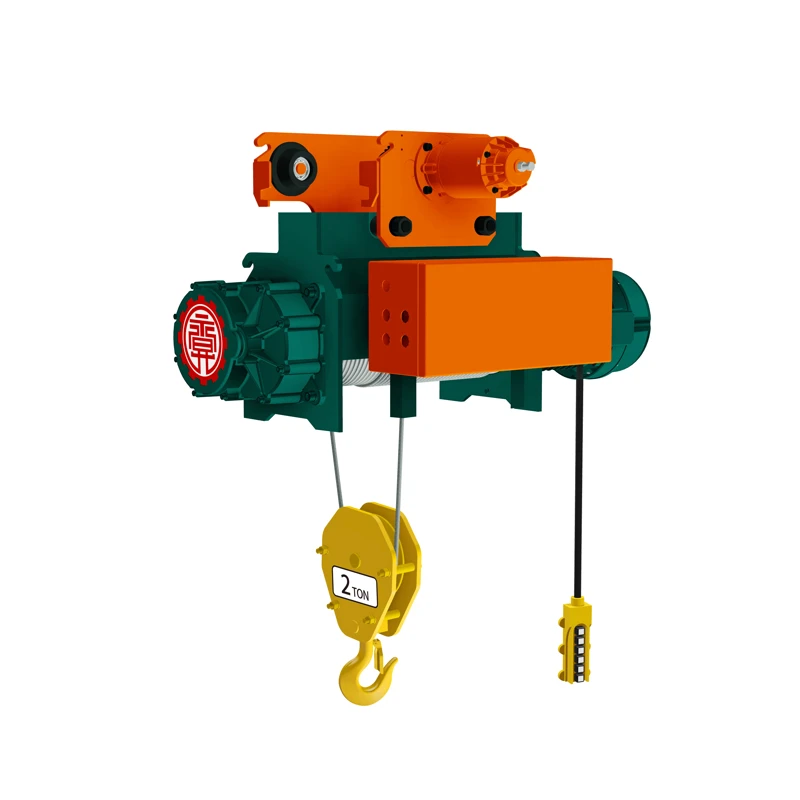

Electric Wire Rope Hoist (DC brake)
1T/2T/3T/5T/7.5T/10T/15T/20T/30T

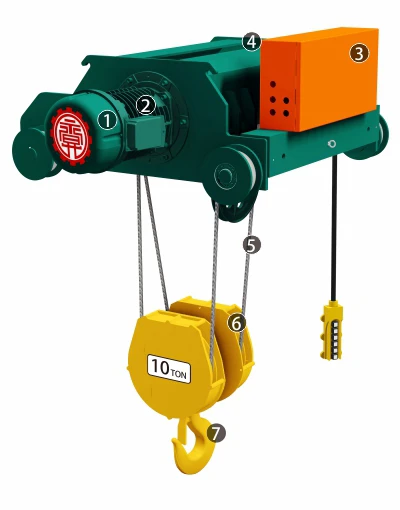

 | 1.DC BrakeNew design of DC brake electromagnetic motor disc system works precisely and synchronously with motors, and with a rectifier for trouble free.
2.MotorHighly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet, small volume , light weight and suitable for most applications. ( Optional function ) A 60%ED rate motor with cooling fan is available for heavy duty condition. 3.Control BoxIP-20 control box is applied; Higher IP degree is available upon request. 4.Gear BoxHoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span. 5.Wire RopeAccording to JIS G 3525 standard wire rope applications 6.SheaveThe proper diameter of sheave ensures the operation and life span of wire rope. 7.HookHot forged hooks with thrust bearing are enable to be swiveled 360˚ |

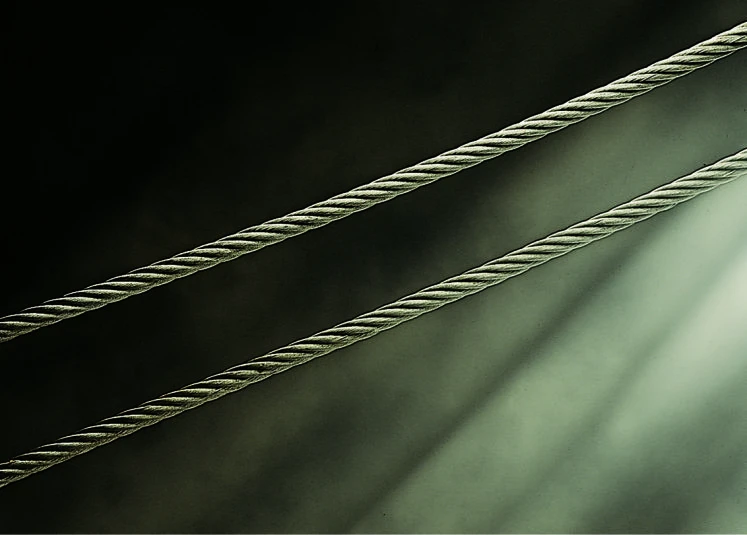

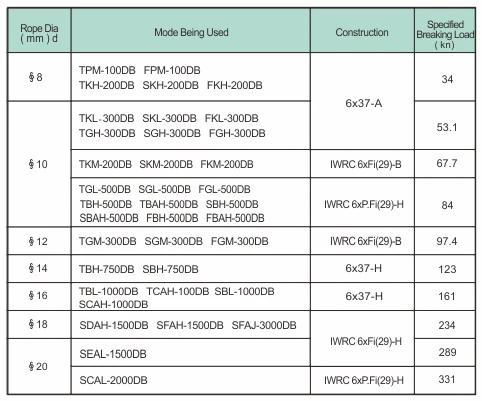

Wire Rope
 |  |

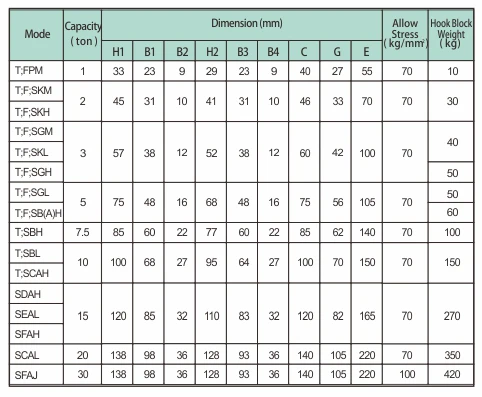

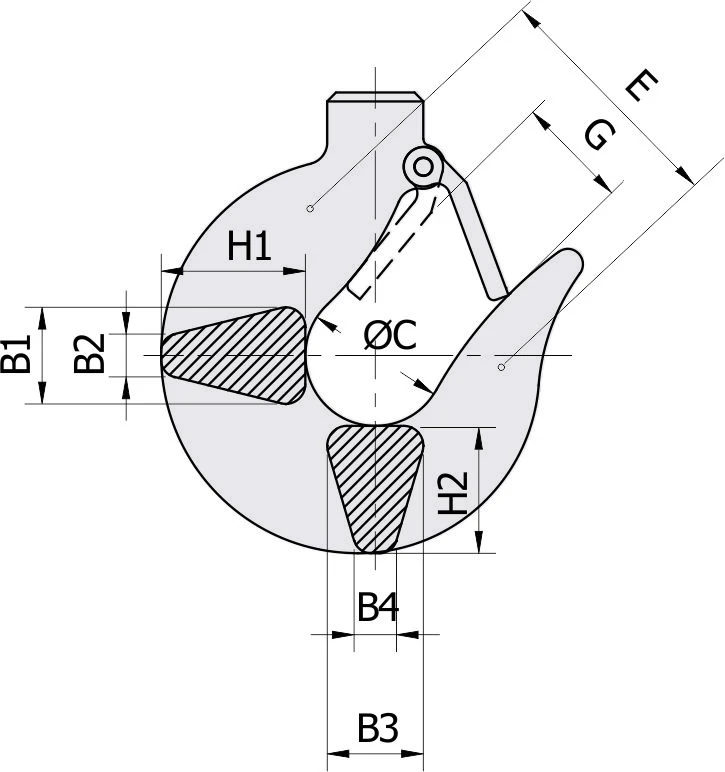

Hook
 |  |
Power Supply :
- Electric wire rope hoist suits majority of the 3-Phase power in different countries,available in 50Hz or 60Hz, voltage from 220V up to 600V.
- Dual-volt hoist subject to our confirmation.

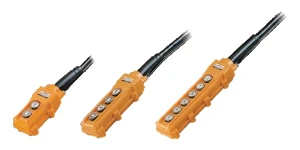

Push Button Switch:
- 2-point type : up and down.
- 4-point type : up and down ； left and right (trolley).
- 6-point type : up and down ； left and right ； forward and reverse (end carrier)
Lifting Height:
- Standard lifting height: Please refer to specifications.
- Optional height available upon request.
