Electric Wire Rope Hoist (DC brake) Wire Rope Hoist SB(A)/SCA/SDA/SEA

  • Model:SB(A),SCA,SDA,SEA

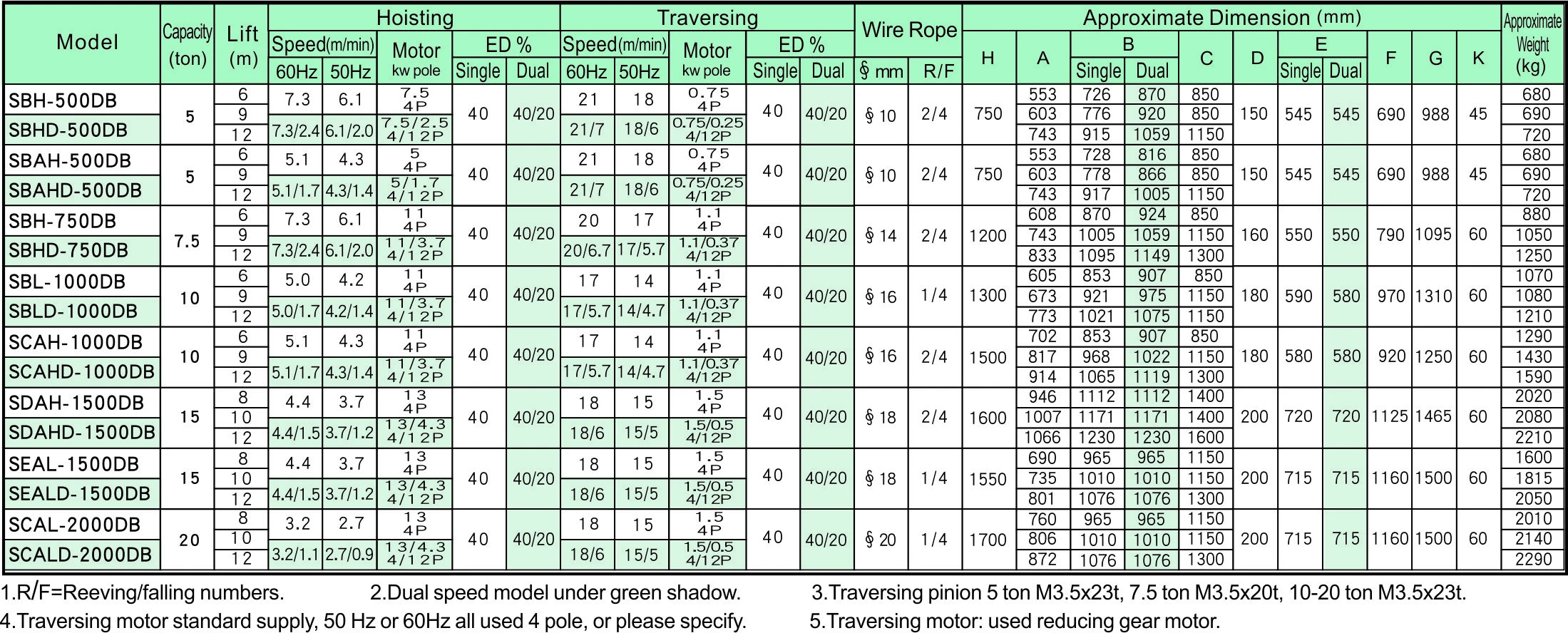

Specification

  • R/F=Reeving/falling numbers.
  • Dua speed model under green shadow.
  • Traversing pinion 5 ton M3.5x23t, 7.5 ton M3.5x20t, 10-20 ton M3.5x23t.
  • Traversing motor standard supply, 50 Hz or 60Hz all used 4 pole, or please specify.
  • Traversing motor: used reducing gear motor.
