What is a Ratchet Lever Hoist?

A ratchet lever hoist, also known as a lever hoist or ratchet hoist, is a compact and portable device designed for pulling, lifting, tensioning, and lowering operations with precision. At Cheng Day, we understand the importance of versatility and efficiency in material handling, as a result, our lever hoist is meticulously crafted to deliver exceptional performance across a variety of applications.

Outstanding Precise Operation

One of the standout features of our ratchet lever hoist is its precise control mechanism, allowing operators to lift and position heavy loads with utmost accuracy. Whether you're lifting, pulling, or positioning loads, our hoist offers unmatched flexibility to adapt to diverse application requirements.

Besides, both the gear and hand chain wheel of the lever chain hoist are protected by hydraulic drew cases which are ideally shaped and rugged to be able to withstand external shocks. The load chain guide ensures the load chain properly fits the load sheave during operation and protects the load sheave from wet and dirt.

Ratchet Lever Hoist : Cost-Effective Solution

In addition to its superior performance and reliability, Cheng Day's ratchet lever hoist offers excellent value for money, providing a cost-effective solution for your lifting requirements. By streamlining your material handling processes and minimizing downtime, our hoist helps enhance productivity and efficiency, ultimately saving you time and money in the long run. Welcome to contact us for more types of manual chain hoists!

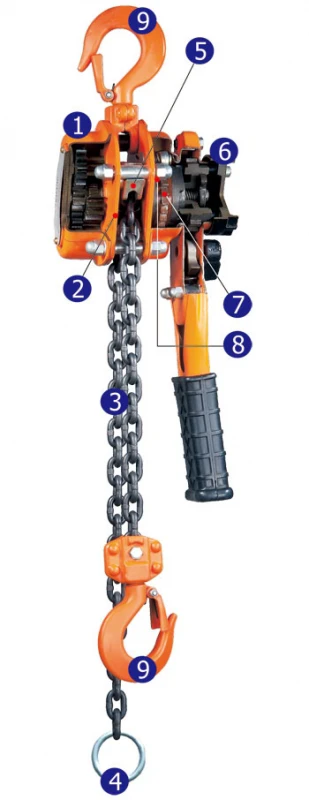

1.Steel Formed Cases Both gear and hand chain wheel are protected by Hydraulic drew cases which is ideally shaped and rugged to be able to withstand external shocks. 2.Bushing Bushing finished by surface hardened treatment and polish procedure serves to increase the mechanical efficiency and reduce the lever operation force. 3.Load Chain Applying grade 80 alloy chain specially calibrates for manual hoists and conforms to ISO and DIN standard. 4.Chain Stopper Work as the lower limit to prevent over traveling during lowering the load. 5.Chain Guide/Load Sheave Ensure the load chain proper fitting the load sheave during operation and protect the load sheave from wet and dirt. 6.Hand Wheel Allow an efficient chain length adjustment by switching the direction switch to“ free ”mold and rotating the hand wheel. 7.Brake Mechanism No matter how heavy the load, the brake works instantly when operation stopped; the lining material is non-asbestos with long lifetime. 8.Dual Ratchet Pawls Dual Ratchet Pawls are applied for extra safety purpose. In case one ratchet pawl fails, the other still maintains its mechanical brake function. 9.Top and Bottom Hooks Ass'y / Hook Housing Hooks with hot forged and heat treatment allow to be swiveled 360ﾟ and are equipped with safety latch to ensure proper hooking the load.

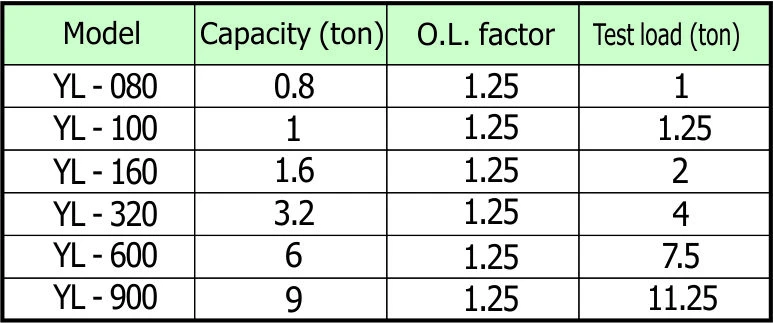

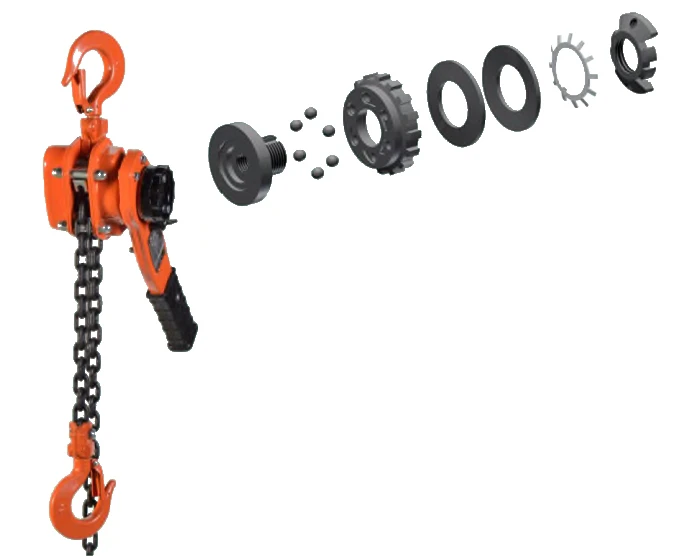

Advantage of Overload Device (O.L)-Optional

※ O.L. for above 10 tons is also available upon request.

• New design of Overload Device with concealed structure protects itself from external effect.
• O.L. could work rapid and stable and be easily restored by reducing the load under rated capacity without readjustment.
• O.L. is manufactured by alloy metal and completed with surface hardness treatment to ensure long life operation.
• O.L is optional and could be attached onto the hoist without changing any hoist structure.
• Suggest using at frequent overload operation environment to ensure users' safety.
• Use overload device to ensure hoist life-span.
